Urban lighting

VICTORY

Lighting Effects

Urban lighting between versatility and high visual comfort
VICTORY is the pole top luminaire for urban lighting, featuring a catchy shape and excellent performance, also available with the latest smart lighting technologies. The wide range of street and radial optics makes it a versatile solution, which does not produce light pollution.

  • Classical design interpreted in a modern twist, able to integrate in any urban area
  • Versions: it can be wall-mounted or installed directly on the pole head, on mono and double pole attachments. Wide range of optics, powers and color temperatures to meet any lighting project need
  • Applications: VICTORY is the ideal solution for public and residential areas, walkways, squares.
  • Bi-power system to design and optimize power and consumption
FUTURE-PROOF
Products available with Zhaga or Nema connection interface.
Read more
Urban lighting luminaire featuring high versatility and elegant design
Victory

Versions


LED Color


Color


Wiring

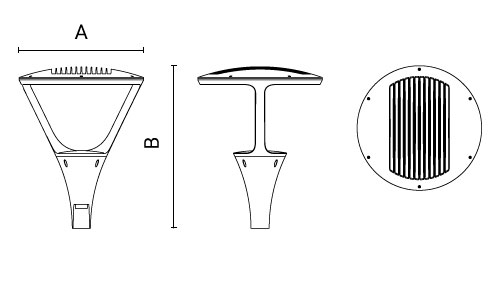

Code Optics Watt Lumen CCT CRI Wiring A B C
0880003A-840-21 type II 51W 4250lm 4000K 80 ON/OFF 520mm 675mm
0880004A-840-21 type II 70W 5800lm 4000K 80 ON/OFF 520mm 675mm
0880005A-840-21 type II 99W 8400lm 4000K 80 ON/OFF 520mm 675mm
0880006A-840-21 type III 51W 4400lm 4000K 80 ON/OFF 520mm 675mm
0880007A-840-21 type III 70W 6050lm 4000K 80 ON/OFF 520mm 675mm
0880008A-840-21 type III 99W 8750lm 4000K 80 ON/OFF 520mm 675mm
0880009A-840-21 type IV 51W 4600lm 4000K 80 ON/OFF 520mm 675mm
0880010A-840-21 type IV 70W 6350lm 4000K 80 ON/OFF 520mm 675mm
0880011A-840-21 type IV 99W 9200lm 4000K 80 ON/OFF 520mm 675mm
0880012A-840-21 type IV-L 51W 4900lm 4000K 80 ON/OFF 520mm 675mm
0880013A-840-21 type IV-L 70W 6700lm 4000K 80 ON/OFF 520mm 675mm
0880014A-840-21 type IV-L 99W 9750lm 4000K 80 ON/OFF 520mm 675mm
0880000A-840-21 type VS 51W 4950lm 4000K 80 ON/OFF 520mm 675mm
0880001A-840-21 type VS 70W 6850lm 4000K 80 ON/OFF 520mm 675mm
0880002A-840-21 type VS 99W 9950lm 4000K 80 ON/OFF 520mm 675mm
