Urban lighting

FORMAT1

Lighting Effects

High performance and refined design for urban lighting
FORMAT1 is the elegant and innovative LED pole-top luminaire for urban lighting with a special vocation for street lighting, that can also be equipped with the latest technologies for smart lighting. Its  thin and slender shape maximises LED potential, creating a unique style able to enhance any urban area, without producing light pollution.

  • With its contemporary design, FORMAT1 adds a touch of modern elegance to the environment
  • Applications: public lighting of pedestrian and cycle paths, squares or walkways
  • Versions: it can be wall-mounted, or directly installed on mono and double pole attachments. The product is available with street or radial optic and with different colour temperatures, in order to satisfy the lighting project requirements.
  • Bi-power system to design and optimize power and consumption
FUTURE-PROOF
Products available with Zhaga or Nema connection interface.
Read more
FORMAT1 format1
format1

Versions


LED Color


Color


Wiring

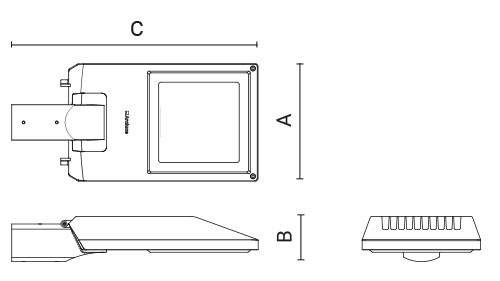

Code Optics Watt Lumen CCT CRI Wiring A B C
0884008A-840-21 type II 35W 3700lm 4000K 80 ON/OFF 250mm 95mm 520mm
0884002A-840-21 type II 76W 7450lm 4000K 80 ON/OFF 250mm 95mm 520mm
0884009A-840-21 type III 35W 3750lm 4000K 80 ON/OFF 250mm 95mm 520mm
0884003A-840-21 type III 76W 8200lm 4000K 80 ON/OFF 250mm 95mm 520mm
0884010A-840-21 type IV 35W 3400lm 4000K 80 ON/OFF 250mm 95mm 520mm
0884004A-840-21 type IV 76W 7400lm 4000K 80 ON/OFF 250mm 95mm 520mm
0884011A-840-21 type IV-L 35W 3350lm 4000K 80 ON/OFF 250mm 95mm 520mm
0884005A-840-21 type IV-L 76W 7300lm 4000K 80 ON/OFF 250mm 95mm 520mm
0884006A-840-21 type VS-M 35W 4000lm 4000K 80 ON/OFF 250mm 95mm 520mm
0884000A-840-21 type VS-M 76W 8700lm 4000K 80 ON/OFF 250mm 95mm 520mm
0884007A-840-21 type VS-W 35W 3350lm 4000K 80 ON/OFF 250mm 95mm 520mm
0884001A-840-21 type VS-W 76W 7300lm 4000K 80 ON/OFF 250mm 95mm 520mm
