Lighting Effects
The highly performant floodlight for outdoor lighting, that integrates into any architectural context thanks to its sophisticated design and powerful but discreet and comfortable lighting

  • Its slim and slender design maximizes the potential of LED sources and fits any environment
  • Versatility: a wide range of colour temperatures and optics - from narrow to ultra-wide and wall-washer, to fit any need of the lighting project. The luminaire can be equipped with single and double-post attachment accessories.
  • Available with Bluetooth Low Energy technology for remote control
  • Versions: FORMAT1 is also available in the Urban Lighting version
  • Application: illumination of parkings, outdoor of shopping centers and sport facilities.


GRAPES
Solutions to expand functionalities of floodlights.
Read more
FORMAT1 format1
format1

Versions


LED Color


Color


Wiring

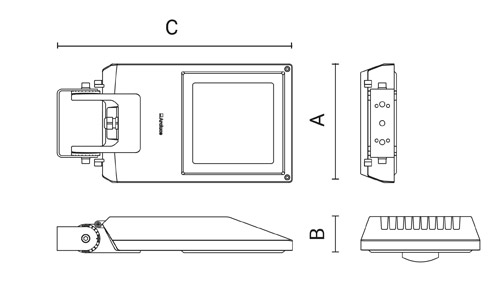

Code Optics Watt Lumen CCT CRI Wiring A B C
0680017F-21 spot 8° 40W RGBW DMX 250mm 75mm 495mm
0680006A-840-21 narrow 12° 35W 3750lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680000A-840-21 narrow 12° 76W 8450lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680012A-840-21 narrow 12° 97W 10350lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680018F-21 medium 25° 40W RGBW DMX 250mm 75mm 495mm
0680007A-840-21 flood 37° 35W 3300lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680001A-840-21 flood 37° 76W 7400lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680013A-840-21 flood 37° 97W 9100lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680019F-21 wide flood 46° 40W RGBW DMX 250mm 75mm 495mm
0680008A-840-21 very wide flood 66° 35W 3100lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680002A-840-21 very wide flood 66° 76W 7000lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680014A-840-21 very wide flood 66° 97W 8600lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680010A-840-21 extra wide flood 140° 35W 3350lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680004A-840-21 extra wide flood 140° 76W 7300lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680020F-21 elliptic 12°x54° 40W RGBW DMX 250mm 75mm 495mm
0680021F-21 elliptic 54°x12° 40W RGBW DMX 250mm 75mm 495mm
0680011A-840-21 asymmetric Imax=60° 35W 3350lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680015A-840-21 asymmetric Imax=35° 35W 3400lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680022F-21 asymmetric Imax=19° 40W RGBW DMX 250mm 75mm 495mm
0680005A-840-21 asymmetric Imax=60° 76W 7300lm 4000K 80 ON/OFF 250mm 75mm 495mm
0680016A-840-21 asymmetric Imax=35° 76W 7400lm 4000K 80 ON/OFF 250mm 75mm 495mm
